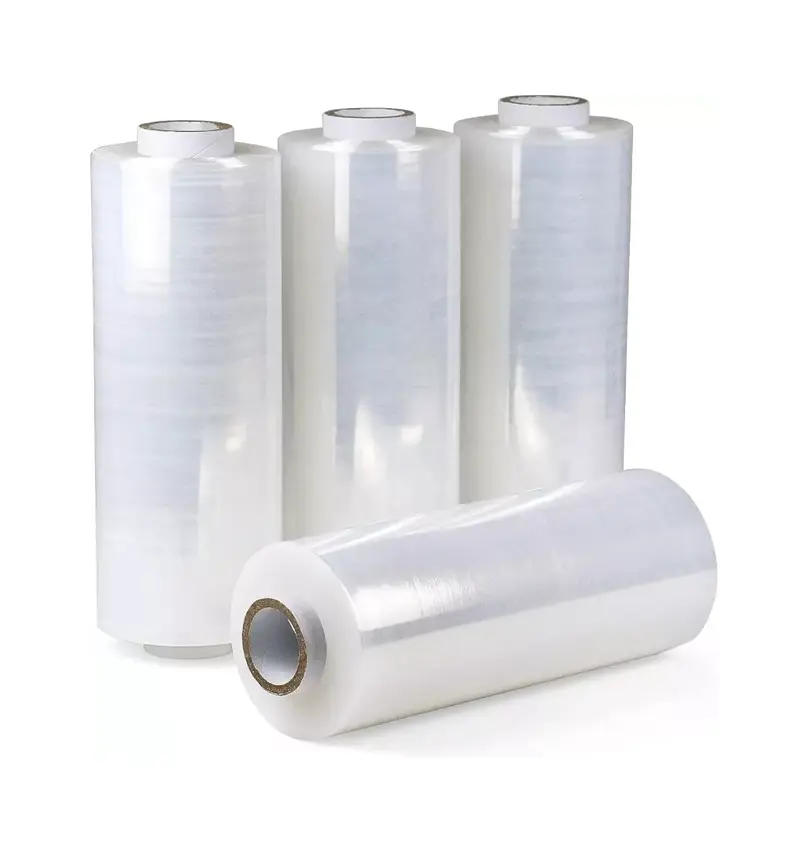

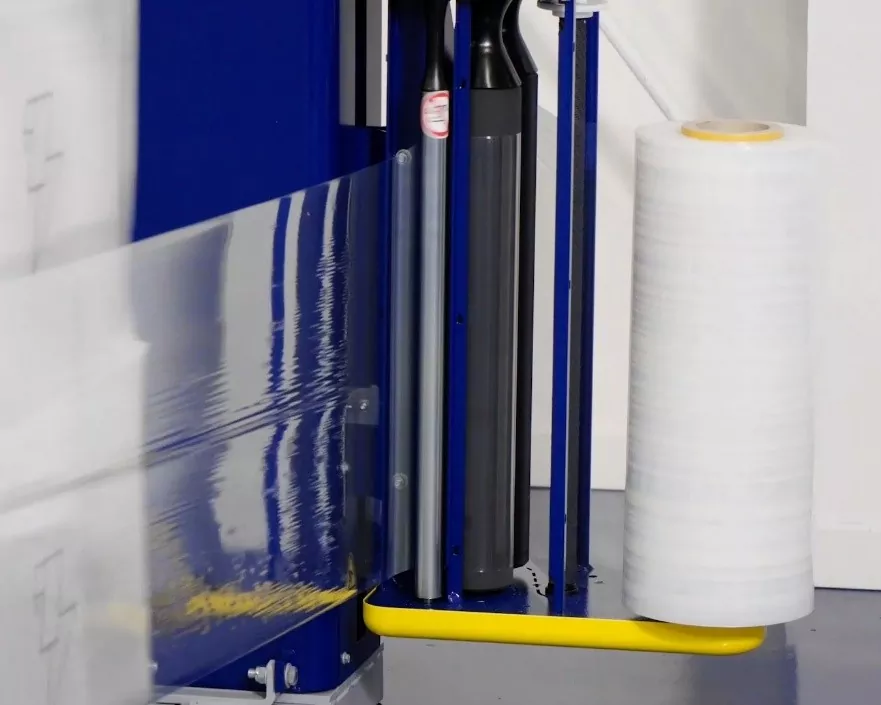

We design cast machine stretch film for high-speed automatic wrapping lines. Yuhong Plastic's product is made for automatic wrapping machines that run nonstop every day. We use mature cast production technology to make sure the film runs smoothly, quietly and steadily on high-speed lines. It holds pallets well during shipping and storage, and works reliably for large warehouses and factories that need consistent packaging results.
The Factory Direct Cast machine stretch film is made from 100% new LLDPE raw materials and is produced through the blown extrusion process. It offers uniform thickness, good transparency, low noise output and steady stretching performance. Yuhong Plastic's produc fits most standard automatic wrapping machines, secures pallets tightly during long-distance transportation, reduces film breakage and improves overall packing efficiency for large‑scale production and logistics scenarios.
Technical Specifications
We offer a full range of sizes for our cast machine wrap to fit different machine models. You can choose standard width, thickness and length, or we can adjust them to match your machine requirements. All parameters are tested to make sure the film runs without breaking or jamming during automatic operation. It supports stable tensile strength, high elongation and even cling performance to match high-speed machine running requirements.
Technical Parameter
Unit
Typical Value
Test Standard / Remarks
Film thickness
μm
20
Customizable range: 12–30μm
Film width
mm
500
Customizable range: 450–500mm
Roll net weight
kg
15
Customizable: 10–25kg per roll
Core inner diameter
mm
76.6
Standard 3-inch paper core
Core length
mm
519
Fits standard pallet wrapper mandrels
Breaking load (MD)
N
≥11
BB/T 0024-2018
Breaking load (TD)
N
≥7
BB/T 0024-2018
Elongation at break (MD)
%
≥420
BB/T 0024-2018
Elongation at break (TD)
%
≥360
BB/T 0024-2018
Puncture resistance
N
≥15.5
Factory internal test
Puncture elongation
mm
≥62
Factory internal test
Self-adhesion
N/cm²
≥0.8
Q/320684DTT01
Haze
%
≤2
GB/T 2410
Light transmittance
%
≥91
GB/T 2410
Recommended running speed
pallets/h
20–25
For standard rotary wrappers
Appearance requirements
–
No bubbles, pinholes, cracks or wax spots; flat surface with slight white streaks allowed; even roll end face
Factory inspection standard
Packaging
–
1 roll per polybag, palletized with stretch wrap for export
Standard seaworthy export packing
Inspection standard
–
BB/T 0024-2018
National industry standard
Full TDS report available upon
Certification and Quality Assurance
We check every batch of our machine cast stretch film before it leaves the factory. We test real performance on machines, make sure the film unwinds well and doesn’t break easily. We can provide normal safety and material test reports you need for customs or market use. We just make sure the film works stably for your daily packing work.
Customer trust and brand endorsement
Our cast pallet machine film is widely used by large logistics companies, food factories, electronics manufacturers and cross‑border e-commerce warehouses around the world. It has been tested and verified in real high‑speed working environments, and earned long‑term trust from customers in more than 30 countries for its stable quality and reliable performance.
Customization / Technological Process
If you need special size for your machine, we can make cast machine film roll as your request. We check your machine information first, then adjust production during extrusion and slitting. We just make the film fit your machine, so you won’t meet jam or break problems when you use it.
Customer Trust & Brand Endorsement
We’ve worked with many manufacturing companies worldwide for years. Most of them are repeat clients.
We produce bulk custom orders of Cast Machine Stretch Film regularly for well-known brands in the packaging industry.
Our team attends major packaging trade shows both at home and abroad every year.
We have tons of real photos from our factory floor and finished bulk orders. They show exactly how we make and deliver our products.
